16mm Ballscrew Kit Linear Guide Rail Set L 16.54 inch / 420mm, SFU1605 RM1605 Anti-Backlash Ball Screw + 2Pcs SBR16 Linear Rail Shaft Guide + 4Pcs SBR16UU Bearing Slide Block for CNC Machine

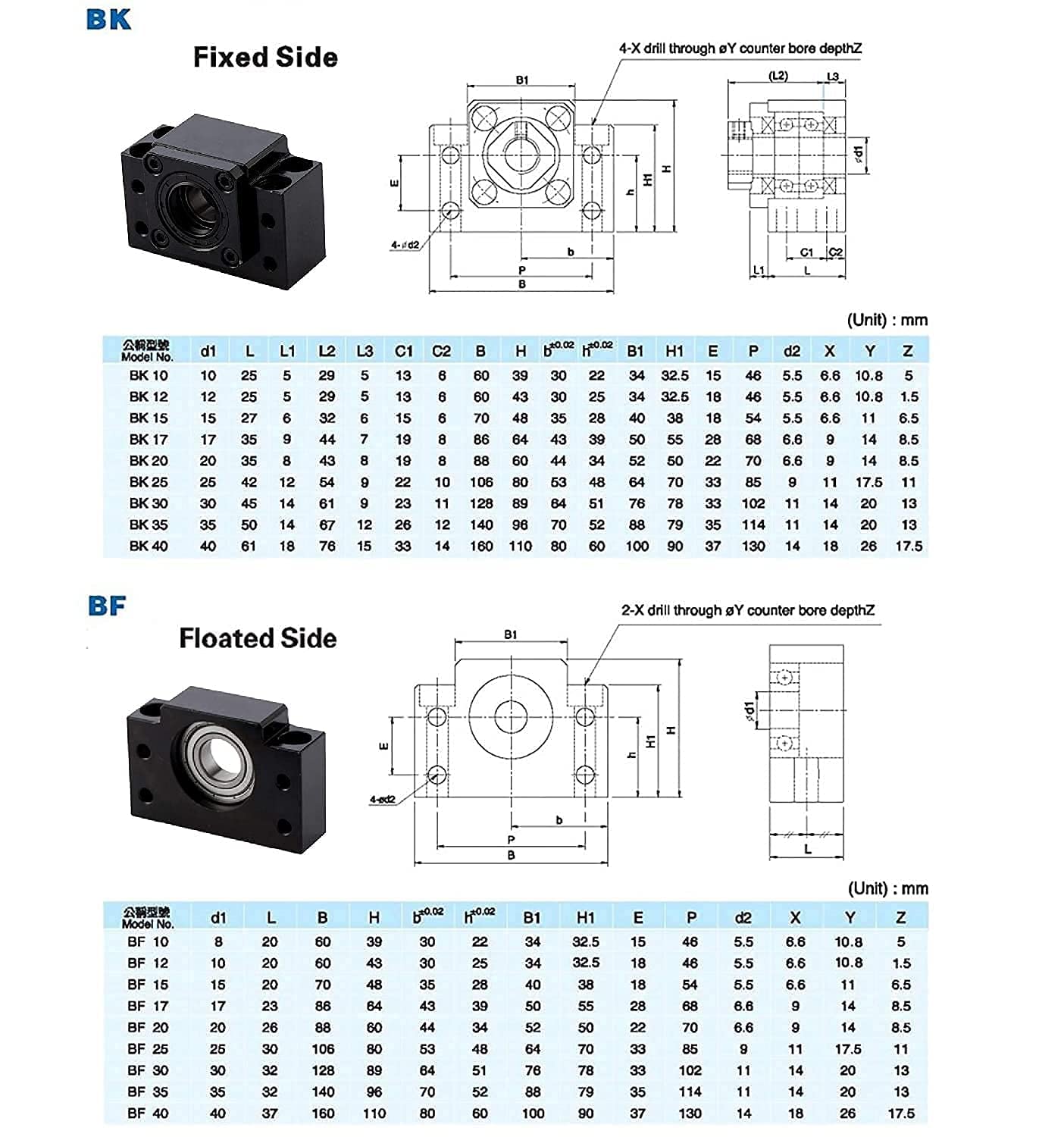

Specifications: Brand: MssoommManufacturing Process: Rolled ThreadPrecision: C7 Grade ( We also can provide C5 Grade, please contact us )Material: GCr15 steelModel: SFU1605This item includes:1pcs Ball Screw SFU1605 RM1605 16mm ballscrwe (with Standard End Machining for BK/BF12), 2Pcs SBR16 linear rails, length 16.54 inch / 420mm ( Both the total length of ball screw and linear rail is the same, if you want to change the length slightly, please tell us )1pcs Metal Deflector Ballscrew Nut1Pcs BK12/BF12 End Supports( The bearing in the end support is deep groove ball bearing, if you need angular contact bearing, message us) with locknuts and circlips1Pcs Flexible Coupler / Coupling ( The standard bore diameter of the coupler which matches the motor shaft is 6.35mm, if your motor shaft diameter is other size, please let us know )1Pcs Ball Screw Nut Housing4Pcs SBR16 UU linear bearing slider blocks (If you want to use other style of blocks, maybe LUU, please communicate with us before order) Customizable lengths:We can provide any length that you want, and please let us know for what lengths are suitable for you then we will calculate the total costs for you ASAP.If you want to process the ball screw according to your drawings or design, please tell us before order.

• Ball screw diameter: 16mm; Lead / Pitch: 5mm; Total length: 16.54 inch / 420mm; Nut + BK12/BF12 End supports with locknuts and circlips +Flexible coupler/ Coupling (The coupler bore for the motor shaft is 6.35mm in default) + Nut Housing, Precision C7 Grade
• This linear rail kit includes 2pcs 16.54 inch / 420mm length linear rail shafts, shaft diameter 0.63 inch/ 16mm and 4 SBR16UU slider blocks
• Long service life time due to low friction, low operation noise; No stick-slip effect, heats up less, reduce driving power required; Small starting torque, able to apply high speed and micro-feeding; High static and dynamic stiffness, high and more accurate positioning
• The material of shaft is the Carbon Steel with Chromium coating, quenching and anti-rust treatment; high hardness, more durable. Industrial-grade standard SBR block, with a high precision linear bearing inside. Make the sliding smooth, low friction, silent operation

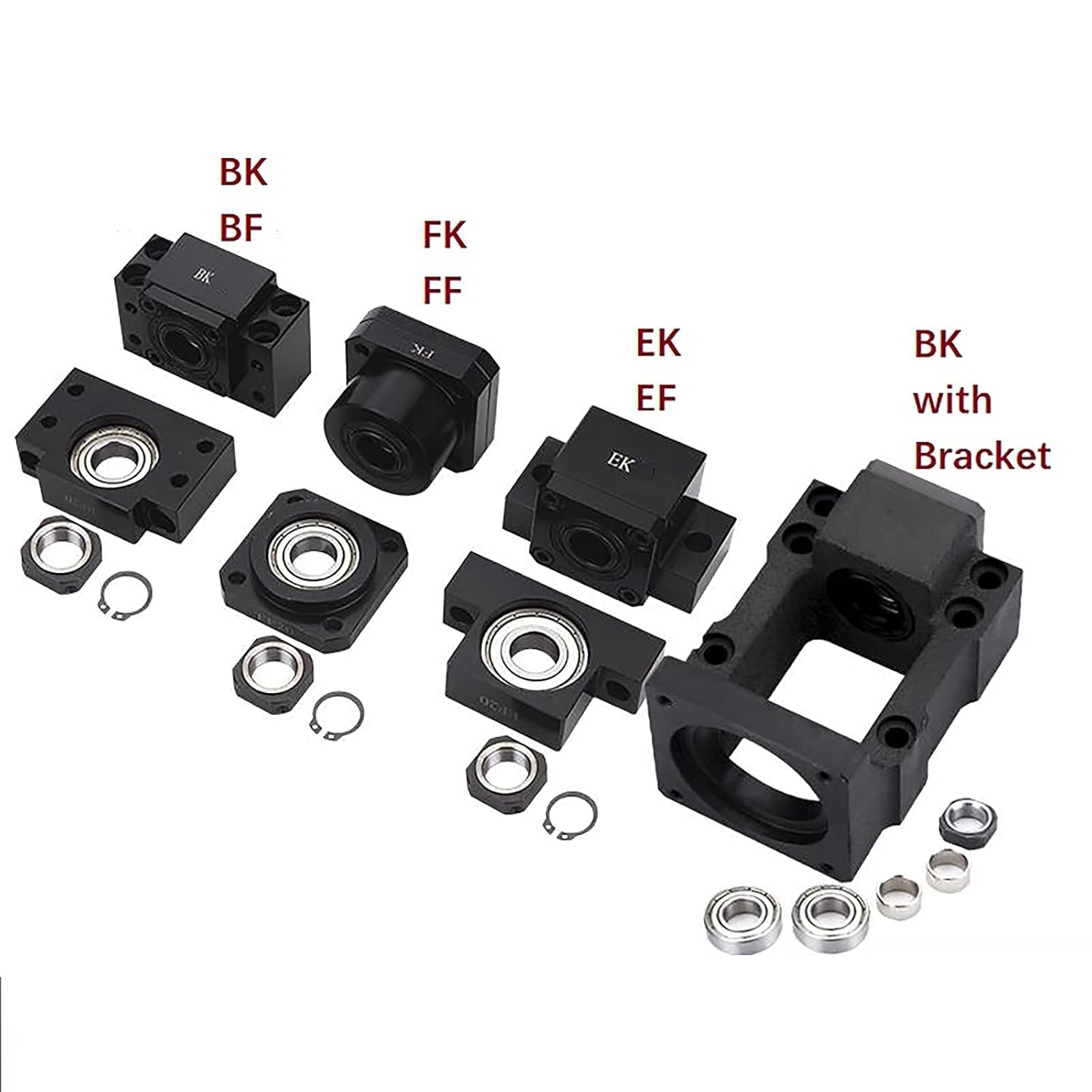

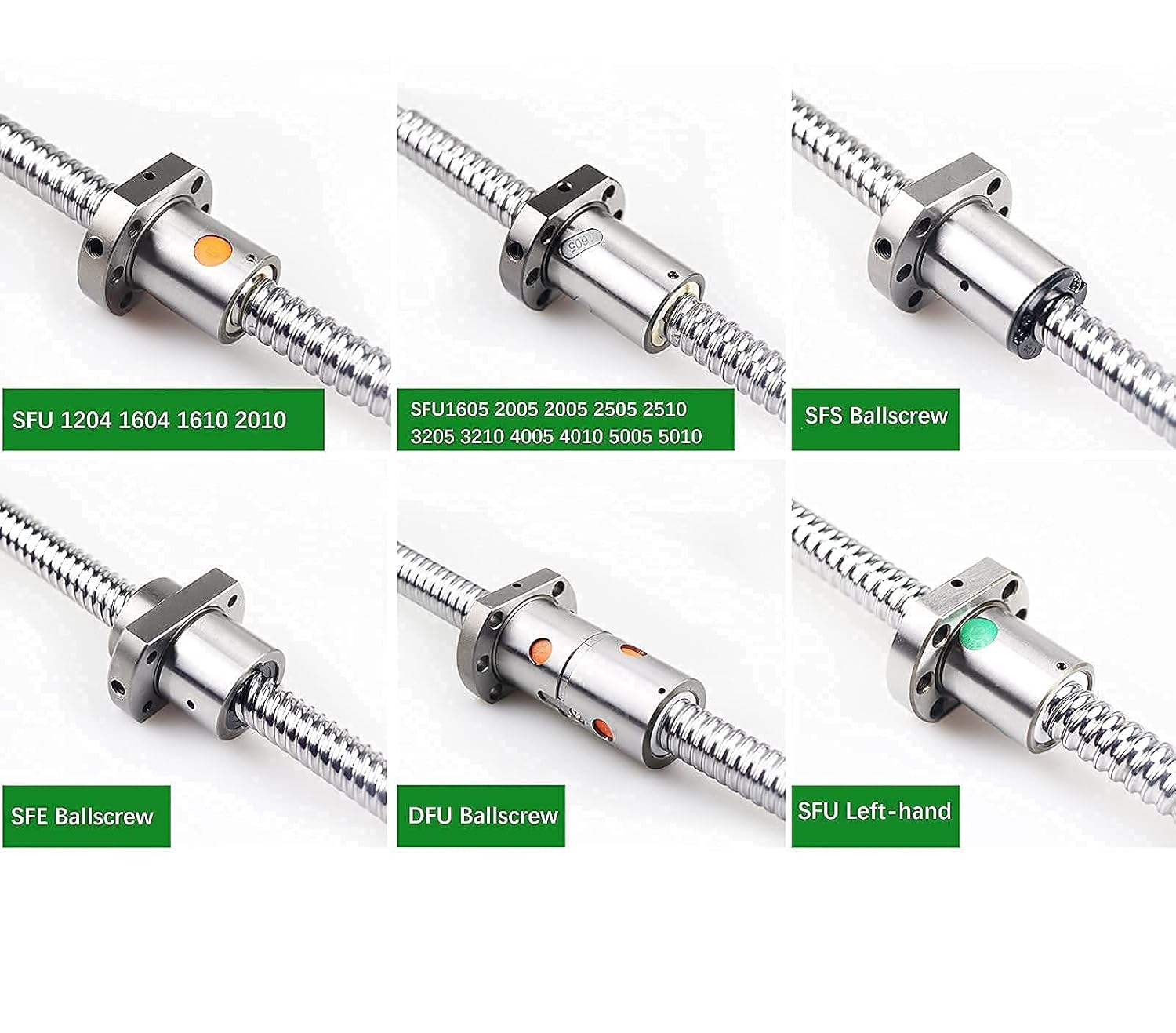

• As a factory seller, we can customize the products, the length or any special manufacturing needs, please tell us. We have full ranges of ballscrew products and the different end supports ( BK BF in default, MBK BF, EK EF or FK FF)
