Netafim Disc Filters for Lawn & Garden Irrigation, Orchards, Drip Tape, etc. (3/4" - 2" Options) (40 Mesh - 200 Mesh Options) (80 Mesh - Yellow, 3/4" MPT - Standard Filter)

- Plastic rings stack together creating a cylindrical filter element. During filtration, the rings are compressed together effectively filtering the water and protecting the system from clogging. Works well as a stand-alone unit or combined to form modular filter batteries. - Grooved, compressed plastic disc rings produce a deep filtration process. As dirty water is pumped into the filter and pressure increases on the outside of the filter, the water pressure compresses the rings together tightly. - Grooves in the disc rings crisscross, forming a three-dimensional network that traps particles. The number of crisscrossed intersection points on each groove varies, depending on filtration grade. The turbulence in the varying paths and the large number of intersections create an environment where particles are eventually trapped. - This design filters the dirty water thoroughly, not only on the outer surface of the cylindrical disc filter but through the entire depth of every ring’s grooves. The result is a larger, more efficient filtering area (when compared to screen filters) with more debris being captured and cleaner water exiting from the filter.

• EFFICIENT: Highly effective multiple disc ring design captures and holds more debris.
• LARGE CAPACITY: Greater holding capacity of the rings vs. screen filters mean less frequent cleaning.
• EASY TO CLEAN: Rings are easily removed for fast cleaning without the need for scrubbing.
• CLEAR IDENTIFICATION: Color-coded disc rings make identification of mesh rating fast and easy.
• MATERIAL: Polypropylene
• O-RING TYPE: EPDM Rubber

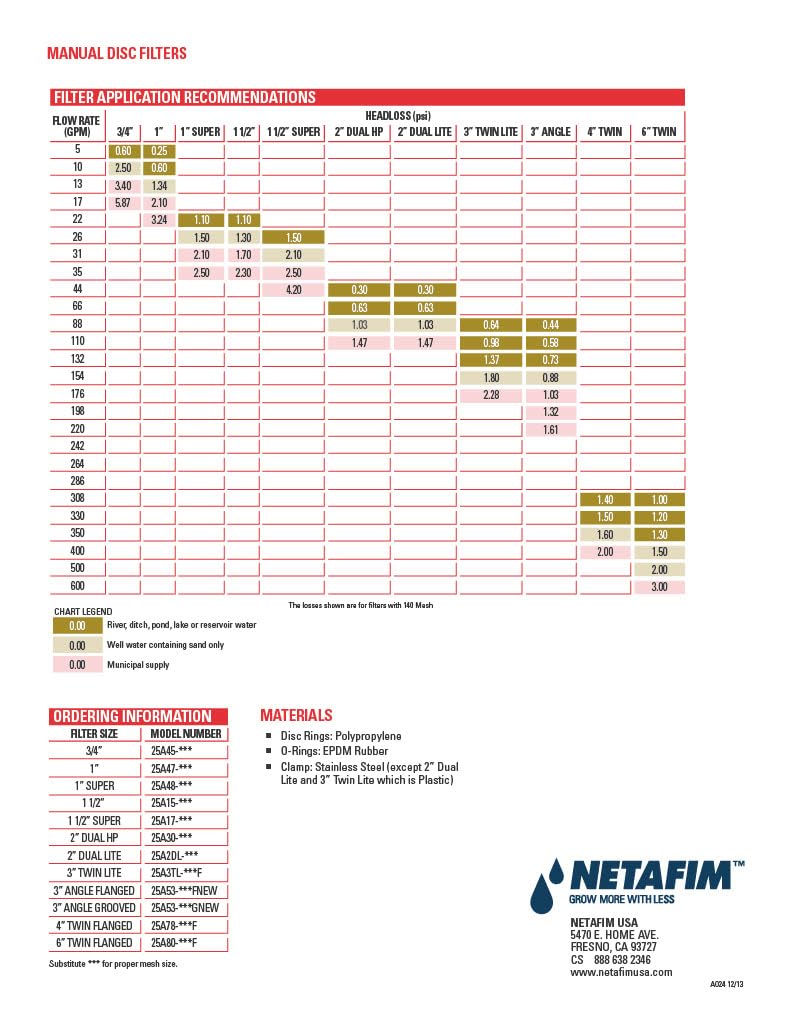

• FLOWRATES, PRESSURE RATINGS, AND DIMENSIONS: See product data sheets in the supporting images.
